Machine embroidery file formats are the backbone of embroidery digitizing, carrying the exact stitch commands that bring a design to life. These formats decide how your embroidery machine interprets shapes, colors, and movements to produce the final stitch-out. Without the right file format, even the best digitizing effort can fail on the machine.
In this guide, we’ll explore everything about embroidery file formats, their definitions, types, evolution, and why they matter so much in digitizing.
The US Guide to Machine Embroidery File Formats & Uses
What Are Machine Embroidery File Formats?
They are specialized digital files that contain the stitch data, color details, and machine instructions required to turn a design into an embroidery. They act as a bridge between the digitizing software and the embroidery machine, ensuring every line, curve, and fill is stitched accurately.

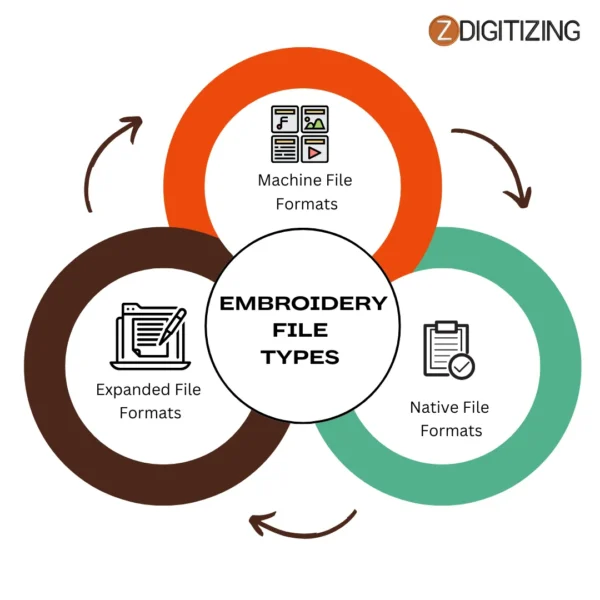

There are three main embroidery file types for embroidery machines:
- Machine File Formats
- Expanded File Formats
- Native File Formats
Each plays a unique role in the embroidery process, and together they make up the backbone of embroidery digitizing.
Evolution of Embroidery File Formats
When we at Zdigitizing first started working in embroidery digitizing, the world of file formats was very different from what it is today. Back then, almost every commercial order we received was delivered in DST format, because Tajima machines dominated the industry.
DST was simple, reliable, and accepted by most commercial machines; however, it had significant limitations. It didn’t store thread color information, so after sending a file, clients often had to assign colors on their machines manually.
We remember countless times when a customer would call us, confused because their design loaded in plain black and white, and we had to explain that this was just how DST worked.
As the years went by, embroidery machines became more advanced, and with that came new file formats. We started noticing requests for PES files, especially from home embroiderers using Brother and Babylock machines.
PES felt like a big step forward because it carried extra data like thread colors and was easier for beginners to use. We still remember how much smoother it became when a client loaded a PES design and instantly saw the right colors on their machine screen. It saved time, reduced mistakes, and made embroidery more enjoyable.
Then came JEF for Janome, XXX for Singer, and eventually VP3 and HUS for Husqvarna Viking and Pfaff machines. Each new format added something extra, whether it was better stitch commands, larger hoop support, or advanced features like automatic trims.
At first, it felt frustrating. Why so many different embroidery digitizing formats? But over time, we understood that each brand wanted to give its users the best possible experience on their own machines.
1. Machine File Formats
They are the stitch-ready embroidery files that an embroidery machine directly reads and executes.
Unlike native formats, which are editable in digitizing software, machine file formats contain only the instructions needed for stitching, such as needle positions, thread colors, and stitch order.
In simple words, they are the final version of a design that “talks” to your embroidery machine.
Purpose of Machine File Formats
They are essential for:
- Stitch Execution: Guiding the embroidery machine on how to move the needle.
- Design Transfer: Allowing digitizers to send finished designs to clients in a format their machine can read.
- Compatibility: Ensuring that embroidery machines can interpret the digitized design without errors.
- Production Efficiency: Helping commercial embroiderers run multiple machines with ready-to-stitch files.
Types of Machine Embroidery File Formats
Today, the most common formats include:
- PES – Brother, Babylock
- DST – Tajima (industry standard for commercial machines)
- JEF – Janome
- EXP – Melco, Bernina
- VP3 – Husqvarna Viking, Pfaff
- HUS – Husqvarna Viking (older models)
- XXX – Singer
- CSD – Poem, Huskygram
Each format serves its own machine family, with some carrying more advanced stitch data while others remain simpler and more universal.
Why Are There So Many File Formats?
A common question embroiderers ask is: “Why do so many machine embroidery file formats exist when all machines are doing embroidery?” The answer lies in brand strategies and machine compatibility.
Each company created its own format to optimize machine performance, preserve unique features, and keep users loyal to its ecosystem. On top of that, as machines advanced, new versions were required to support more complex embroidery capabilities.
Why Do File Formats Have Variants?
An important detail many beginners overlook is that each file format often comes in different versions.
For example, PES has multiple generations; older Brother machines may only accept PES version 5 or 6, while newer ones support version 10 and beyond.
The same goes for JEF, VP3, and other formats, where updates are released to support larger hoops, new stitch types, or advanced features.
So why are there so many versions? Embroidery machines evolve with time, and file formats must adapt to keep up with those changes. Older machines may not read the newest file version, which is why digitizers need to know exactly which version their client’s machine supports.
2. Expanded File Formats
They are universal embroidery formats that store only the stitch data needed to run on different machines. They are not brand-locked and act as a “common language” that most embroidery machines can understand. These formats tell the machine where to place each stitch, but usually do not include editing information or advanced design details.
Types of Expanded Formats
The two most common expanded embroidery formats are:
- DST (Tajima) – The industry’s most widely used format, recognized almost everywhere.
- EXP (Melco/Bernina) – Another reliable expanded format, supported by many commercial machines.
When Do We Need Expanded Formats?
Expanded formats are essential when:
- You want to run the same design on different brands of embroidery machines.
- You are preparing files for production or mass embroidery, where editing is not needed.
- You need a simple, lightweight format that machines can read quickly without software dependencies.
Characteristics of Expanded Formats
- Universally recognized: Readable by many embroidery machines worldwide.
- Lightweight: Small file sizes, fast to transfer and load.
- Stitch-only data: Contains stitch positions and commands, but usually no color information.
- Read-only: Cannot be easily edited; changes require going back to the native design file.
- Reliable: Ideal for production, reducing compatibility issues.
3. Native File Formats
They are the original working files produced by embroidery digitizing software. Unlike stitch-only files, they contain every detail of the design: stitch types, density, color charts, underlay, layers, and scaling information.
They are not meant to be loaded directly into a machine but instead act as the source file from which other formats are created.
Why Are They Important?
Imagine finishing an embroidery design for a logo today, but a client asks for a different size or fabric tomorrow. If you only saved a DST or PES, you’d be stuck with limited editing options.
With the native file, you can resize without distortion, switch fill patterns, adjust density, or recolor designs with precision. It’s the difference between working from a master painting versus a photocopy.
Types of Native Formats
Different embroidery software creates its own native formats, such as:
- EMB – Wilcom Embroidery Studio
- CND – Melco DesignShop
- OFM – Melco
- PXF – Pulse
- PUM – Punto
- JAN – Janome Digitizer
Key Characteristics of Native Files
- Fully Editable: Preserve all digitizing properties for future changes
- Software Specific: Each native format ties back to its own program
- Detail-Rich: Store stitch objects, layers, and design instructions
- Not Machine-Readable: Must be converted to DST, PES, JEF, etc., before stitching

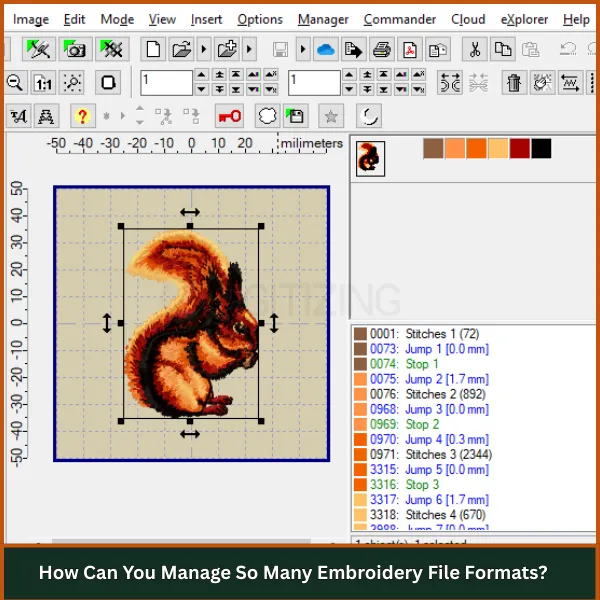

How Can You Manage So Many Embroidery File Formats?
It’s a common issue. Once you start downloading or creating designs, you’ll quickly find yourself with a mix of PES, DST, JEF, EXP, and others scattered around.
The simplest solution is to set up a clear folder system. Keep one folder for machine-specific files, another for expanded files, and one for native files.
Use descriptive names for your designs with embroidery design file extensions, like ClientName_Logo_V1.PES, and always save new edits as V1, V2, or Final. This way, everything stays organized and easy to find.
Can You Convert One Embroidery File Format into Another?
Yes, you can convert between machine embroidery file formats, but it’s not always perfect. With digitizing software or conversion tools, a PES file can be turned into JEF, or a DST into EXP. However, the process may strip away some details, such as color charts or advanced stitch properties.
To avoid losing quality, it’s best to keep the native file as your master. From there, you can export clean versions into any other format your machine requires.
Can Embroidery Files be Edited Directly?
This depends on the type of file you have. Native formats like EMB or OFM are fully editable. You can resize, change stitch types, adjust density, or recolor the design without issues.
On the other hand, expanded or machine-specific formats (DST, PES, JEF) have very limited editing capabilities. You might resize slightly, but often the stitch quality will suffer. That’s why saving and keeping the native file is crucial. It’s the only safe way to make proper edits.
Conclusion
We’ve taken you through a complete journey of machine embroidery file formats, so before we wrap up, here’s a quick reminder of what we covered:
- The three main types of formats: Machine-Specific, Expanded, and Native.
- When and where to use each type of file for embroidery projects.
- Why so many different formats exist and how their variants work.
- Key characteristics that separate editable files from stitch-only production files.
- Answer your common questions
At ZDigitizing, we make all of this simple for you. We provide professional embroidery digitizing services in every format you need. Whether your machine requires PES, JEF, DST, EXP, or any other type, we’ll deliver it exactly as you require. We offer fast delivery, super-quick turnaround times, flat rates, 3D secure payment methods, and 24/7 support. You’ll never be left waiting.
And to help you get started, we’re offering 50% off your first order, so you can try our services at half price and see the quality for yourself.
ORDER NOW and get your designs digitized with ZDigitizing, fast, accurate, and always reliable!
FAQs
Embroidery machines use specific formats depending on the brand. For example, Brother machines read PES, Janome uses JEF, Bernina uses ART, and commercial machines like Tajima read DST. The exact format depends on your machine, but most digitizing services can provide the file in whatever format your machine requires.
Yes, but not directly. A JPG is just an image, while a PES is a stitch-ready embroidery file. To convert JPG to PES, the image must go through the digitizing process, where special software translates the artwork into stitches. Only then can it be saved as a PES file for Brother or Babylock machines.
Yes, SVG files can be converted into embroidery formats, but like JPG, they first need to be digitized. An SVG is a vector graphic, which gives cleaner outlines, making it easier for software to assign stitches. Once digitized, it can be exported into any embroidery format such as DST, PES, or JEF.
No, EPS is not an embroidery file, it’s a graphic format mainly used for printing and design. To use an EPS in embroidery, it must be digitized first. After digitizing, it can be saved as an embroidery design file extension like PES, DST, EXP, or JEF that machines can read.
DST is an expanded format widely used in commercial embroidery. It contains only stitch data without color information. PES, on the other hand, is a machine-specific format for Brother and Babylock machines that stores additional details like thread colors. In short, DST is universal for production, while PES is more user-friendly for home machines.
