Whether an is proemb embroidery machine compatible with magic hoops setup will work for your workshop depends on your exact PROEMB model and the hoop’s mounting bracket system. Magnetic hoops are available for several PROEMB machine series, but they are not universal, so you should confirm your model number and the hoop manufacturer’s compatibility listing before purchasing.
A compatible hoop must also fit the machine’s sewing field and carriage properly. Choosing a hoop only by its outside dimensions can lead to mounting problems, clearance issues, or an embroidery area that is smaller than expected.
Is PROEMB Embroidery Machine Compatible with Magic Hoops?

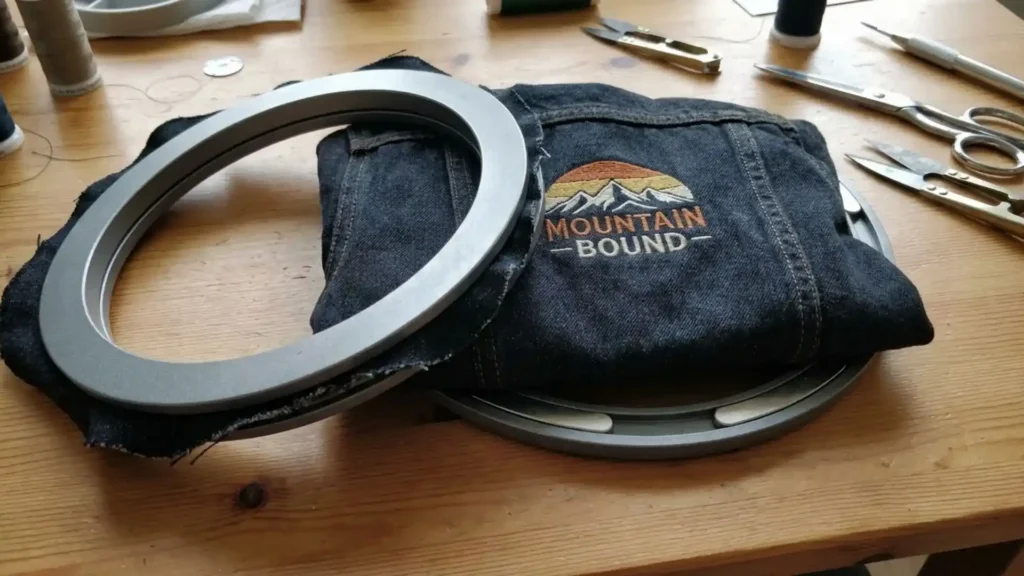

What Is a Magic Hoop for an Embroidery Machine?
A Magic Hoop is a type of magnetic embroidery frame that holds fabric between magnetic components instead of relying on the traditional inner-and-outer ring system. The fabric is positioned between the frame sections and held by magnetic force during embroidery.
Unlike a conventional hoop, the magnetic system does not require forcing bulky materials into a tight inner ring. This makes hooping significantly easier, particularly when working with delicate fabrics, thick jackets, zippers, pockets, or complex layered garments.
Can You Use Magnetic Hoops With PROEMB?
Yes, compatible magnetic hoops are available for a number of PROEMB models. However, can you use magnetic hoops with ProEmb is not a question that should be answered by brand alone.
The important factors are:
- Your exact PROEMB model and series
- The magnetic hoop’s mounting configuration
- The available sewing field
- The hoop’s physical dimensions
- Clearance around the needle and presser foot
- Whether the hoop is specifically listed for your machine
This means a magnetic hoop designed for one embroidery machine should not be assumed to fit another PROEMB model simply because both machines use similar-looking hoops.
How to Check PROEMB and Magic Hoop Compatibility
Before buying a Magic Hoop for embroidery machine use, check the machine model printed on the machine or listed in its documentation. Then compare it with the compatibility information provided for the specific magnetic hoop.
1. Identify Your PROEMB Model
Start with the complete model number when checking if an is proemb embroidery machine compatible with magic hoops setup is viable, rather than simply searching for generic terms. Models in different PROEMB series can use different mounting configurations.
Some PROEMB models reported as having compatible magnetic-hoop options include BF-900, BF-1200, BF-1500, FW-1201, FW-1501, and several BC-series and multi-head models.
Treat these as model-specific compatibility examples, not as proof that every hoop will fit every machine.

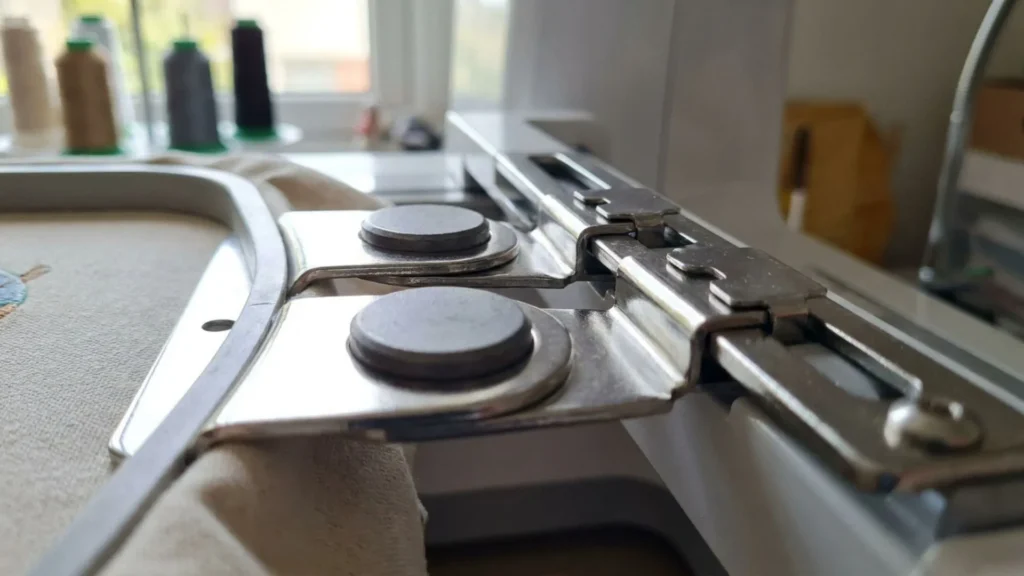

2. Check the Mounting System
The magnetic frame needs to attach correctly to the machine’s existing hoop arm or carriage. The mounting tabs, clamps, and attachment points must match.
A hoop with the correct embroidery dimensions but the wrong mounting hardware is still incompatible, regardless of whether an is proemb embroidery machine compatible with magic hoops claim is made online.
3. Check the Actual Sewing Field
An embroidery machine hoop size does not always represent the exact area the needle can embroider.
For example, a hoop marketed as 6 × 8 inches may have a smaller usable sewing field because space is needed for the frame, machine movement, and mechanical clearance.
Always compare your design dimensions with the stated sewing field rather than assuming the full outer hoop dimensions are available for stitching.
4. Confirm Clearance
After mounting a compatible frame, there must be enough clearance for the needle, presser foot, carriage, and garment.
Thick fabric, bulky seams, or incorrectly positioned material can create problems even when the hoop itself is compatible.
This is particularly important when using magnetic frames on jackets, towels, fleece, and other bulky materials.
Common PROEMB Magnetic Hoop Sizes
Magnetic hoops for PROEMB are available in different dimensions for different embroidery applications. The right embroidery hoop size chart should therefore be used as a selection guide rather than choosing the largest available frame automatically.
Approx. Hoop Size | Typical Use |
3.9 × 3.9 in (100 × 100 mm) | Pockets, cuffs, small logos |
5.1 × 5.1 in (130 × 130 mm) | Left-chest designs and medium logos |
6 × 8 in (150 × 200 mm) | Larger shirt, jacket, and garment designs |
7.6 × 2.7 in (195 × 70 mm) | Narrow embroidery areas such as sleeves |
The available sizes vary by PROEMB model and hoop manufacturer, so these dimensions should not be treated as a universal PROEMB hoop range.
The key rule is simple: choose the frame based on the machine model and required sewing field, not the hoop’s advertised outer size alone.
Magnetic Hoops vs. Standard Hoops
The main difference between magnetic hoops and standard hoops is how the fabric is secured. A conventional hoop uses inner and outer rings to clamp the material, while a magnetic embroidery hoop holds the fabric between magnetic frame components.
This can make a noticeable difference when working with garments that are difficult to hoop normally.
Feature | Magnetic Hoop | Standard Hoop |
Hooping speed | Generally faster | Can take more time |
Bulky garments | Easier to position | Can be difficult to clamp |
Hoop marks | Usually less pressure marking | More likely on some fabrics |
Thick materials | Useful for many bulky items | May be harder to hoop |
Small embroidery areas | Convenient when the correct size is available | Wide range of standard sizes |
Cost | Usually higher | Generally more economical |
Compatibility | Must match the machine and bracket system | Usually supplied with the machine |
The magnetic hoop vs conventional hoop choice therefore depends on the material, design, and type of work you do most often.
Benefits of Magnetic Embroidery Hoops
One of the biggest benefits of magnetic embroidery hoops is easier fabric placement. Instead of forcing a garment into an inner ring, you can position the embroidery area and secure it with the magnetic frame.
They can be particularly useful for:
- Jackets and other bulky garments
- Towels and fleece
- Garments with seams or pockets near the embroidery area
- Materials that show hoop marks easily
- Repeated production where faster hooping saves time
Magnetic frames can also make positioning more comfortable when you are working with multiple garments.
However, they are not automatically better for every project. Thin or slippery materials may still require suitable stabilizer and careful positioning, and the magnetic frame must have enough holding strength for the material being embroidered.
When Should You Use a Standard Hoop?
A standard hoop can still be the better choice when you already have the correct machine-supplied sizes, need a particular embroidery field, or are working with a material that is easy to hoop conventionally.
Standard hoops are also useful when you need a size that is not available in a compatible magnetic system.
A magnetic hoop is not automatically the better choice; standard hoops can still be more practical for some jobs. Compare the actual embroidery area, material, mounting system, and type of work before deciding.

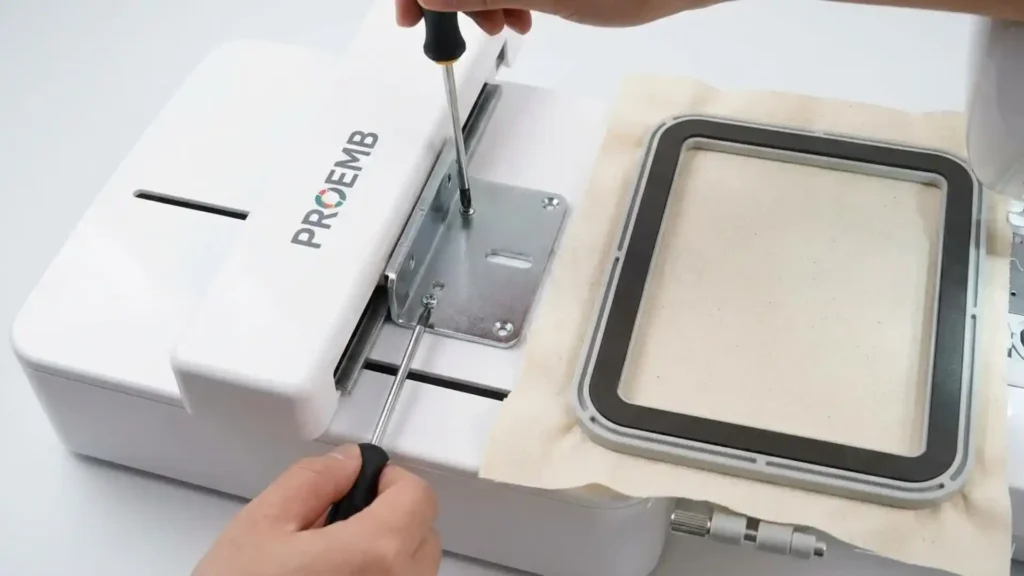

How to Install Magic Hoop on ProEmb
If you are researching how to install Magic Hoop on ProEmb, start by checking the installation instructions supplied with the specific magnetic frame. The mounting system can differ between PROEMB models and hoop manufacturers.
The general process is:
- Turn the embroidery machine off before changing the hoop.
- Remove the existing hoop according to the machine’s normal procedure.
- Attach the compatible magnetic frame or its matching mounting bracket to the hoop carriage.
- Make sure the attachment points are properly aligned and securely fastened.
- Position the garment inside the magnetic frame and secure the fabric.
- Move the carriage carefully through its available range to confirm that the frame and garment have sufficient clearance.
- Select the correct hoop or embroidery area in the machine settings when required.
- Run a careful test before starting the final embroidery.
Some magnetic hoops use model-specific brackets or mounting components, so do not assume that the mounting hardware from one PROEMB-compatible frame can be transferred to another model.
Never force a frame onto the carriage. If the mounting points do not align correctly, stop and verify the exact machine and hoop combination.

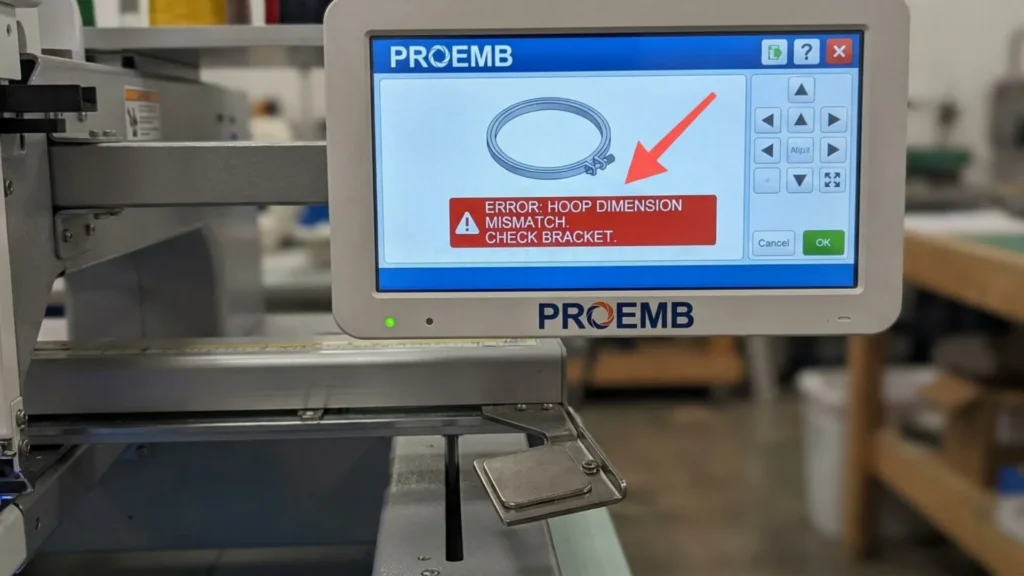

What Causes a PROEMB Embroidery Machine Hoop Error?
An embroidery machine hoop error after installing a magnetic frame does not necessarily mean the magnetic system itself is defective.
Common causes include:
- The hoop or bracket is not designed for the exact PROEMB model
- The selected hoop size does not match the machine settings
- The frame is mounted incorrectly
- The hoop or garment does not have enough clearance
- The design exceeds the usable sewing field
- Thick material is positioned too close to the machine’s moving parts
If the machine gives an error immediately after mounting the frame, check the model compatibility and mounting system first. If the machine accepts the hoop but the embroidery moves poorly or hits the frame, check the physical clearance and design dimensions.

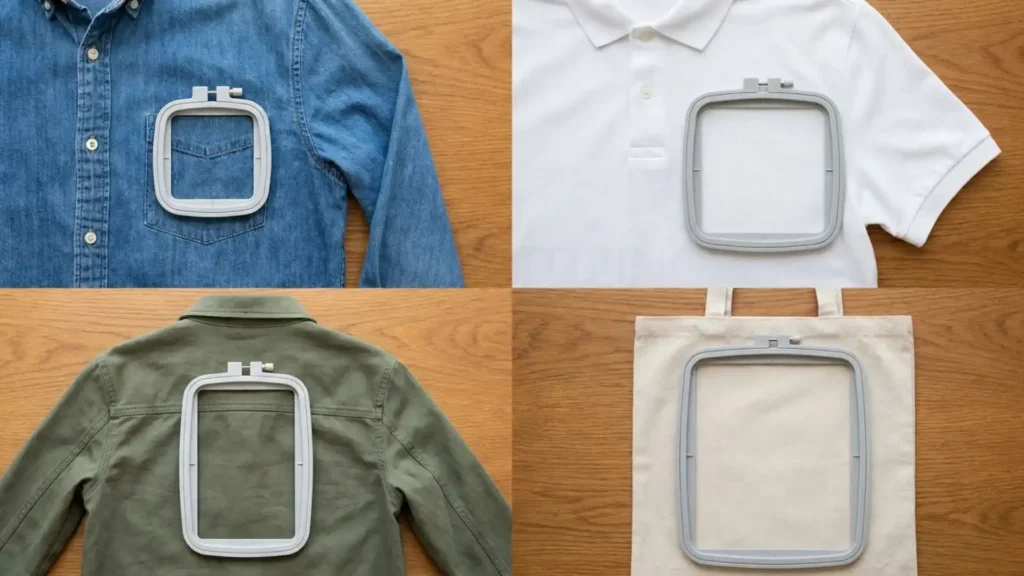

Choosing the Best Hoop for ProEmb
The best hoops for ProEmb depend more on the embroidery application than on simply choosing the largest available frame.
For example:
- Left-chest logos: A 5.1 × 5.1-inch frame is useful for many medium-sized designs.
- Pockets and small areas: A 3.9 × 3.9-inch frame can be more practical.
- Jackets and larger garments: A 6 × 8-inch frame can provide more usable space when supported by the machine.
- Sleeves or narrow areas: A narrow frame such as 7.6 × 2.7 inches can suit elongated designs.
- Towels and fleece: Choose a frame with enough space for the design while allowing the material and stabilizer to sit securely.
Always compare these dimensions with the actual sewing field listed for your specific PROEMB model.
Can You Use Magnetic Hoops for Caps?
Caps require a different approach because their curved construction does not work the same way as a flat garment.
A standard flat magnetic embroidery hoop is generally not the right solution for cap embroidery. Dedicated cap frames, cap drivers, or other specialized attachments are normally used to hold the cap correctly while it moves through the embroidery area.
If your main work is hats and caps, look for a cap-specific setup that is confirmed for your exact PROEMB model rather than trying to adapt a flat magnetic frame.
This is also where cap digitizing services can become relevant, because cap embroidery often requires designs prepared specifically for the curved sewing area.
Your Hoop Must Match the Design Too
Buying a compatible magnetic frame solves only the physical machine-compatibility problem. It does not mean every embroidery design will fit that frame.
For example, a design measuring 5.8 × 7.2 inches cannot be embroidered inside a sewing field that is only 5.1 × 5.1 inches.
Before starting, compare:
- The design’s actual width and height
- The hoop’s usable sewing field
- The machine’s maximum embroidery area
- The placement area on the garment
This is why an embroidery hoop size chart should be used alongside the design dimensions rather than as a standalone selection guide.
When a design file must be scaled down to fit smaller boundaries, professional embroidery digitizing is required to adjust stitch density, underlay structure, and small lettering without causing thread breaks.
A Simple Checklist Before Buying a Magic Hoop
Before choosing a Magic Hoop embroidery frame for your PROEMB machine, check these points:
- Confirm the exact machine model. Do not rely only on the PROEMB brand name.
- Check the hoop’s compatibility list. Make sure your model is specifically included.
- Verify the mounting bracket. The attachment system must match the machine’s hoop carriage.
- Check the usable sewing field. Compare it with your actual design dimensions.
- Confirm clearance. Make sure the frame, garment, needle, and presser foot can move safely.
- Choose the frame for the application. A small chest logo may need a different size from a jacket-back design.
- Check cap requirements separately. Use dedicated cap drivers for headwear production.
Planning ahead with custom Machine embroidery digitizing ensures your files are pre-formatted for your specific frame sizes before hitting the factory floor.
If those points match, you can avoid most compatibility and clearance problems before installation.
Does PROEMB Work Better With Magnetic Hoops?
There is no single answer for every embroidery business. Magnetic hoops can make hooping significantly faster and easier, especially if you regularly handle bulky items, heavy outerwear, or fabrics prone to hoop burn.
However, standard hoops remain a practical option when working with routine flat garments or when using specialized OEM sizes already on hand. The ideal choice ultimately comes down to matching your specific PROEMB model, production speed goals, and material types.
Conclusion
So, is proemb embroidery machine compatible with magic hoops? Yes, compatible magnetic hoops are available for several PROEMB models, but compatibility is model-specific. Always verify the machine model, mounting system, usable sewing field, and clearance before purchasing or installing a frame.
A magnetic hoop can be a useful upgrade for faster and easier garment hooping, but the correct frame size and design preparation still determine the final embroidery result. If you handle diverse garment types and hoop sizes, partnering with high-quality embroidery digitizing services in USA ensures your artwork is digitized perfectly for your sewing fields. New customers receive 50% off their first order to experience flawless embroidery files on any hoop setup.
