Many embroiderers run into the same problem: a design file opens on one machine but not another. That is where an embroidery file format converter becomes useful, because it helps turn one supported embroidery format into another your machine can read. This guide is built for beginners, professionals, and small businesses that want simple, practical answers.
It covers the best free tools, what they do well, where they fall short, and when you need real digitizing instead of a basic file change.
8 FREE Machine Embroidery File Format Converters
What Is an Embroidery File Format Converter?
An format converter is a program or online tool that helps you change one embroidery file type into another so it can work with different machines.
Every embroidery design has its own file type, for example, DST, PES, or JEF, and not all machines can read them.
This means if you download a design online, your machine might reject it. A converter solves this by translating the file into a format your embroidery machine understands.
It’s a lifesaver for beginners, professionals, and businesses handling multiple brand machines.
8 Best FREE Embroidery File Format Converters
Below are eight free tools trusted globally to convert embroidery formats quickly and safely. Each one is tested for ease of use and machine compatibility.
1. Wilcom TrueSizer
Wilcom TrueSizer is one of the most recognized converters developed by Wilcom, a leading company in embroidery software. It allows you to open, resize, and convert nearly all major embroidery formats.
Key Features:
- Converts between DST, PES, EXP, JEF, and more
- Free desktop and web version
- Maintains stitch count and color sequence
- Works for most commercial embroidery formats
Best For: Professionals who need precise stitch-safe conversions.
Using TrueSizer, you can convert JPG to embroidery file format easily by digitizing first and then saving it in the required output.
2. Embroidery Viewer Online
This embroidery file format converter is a simple browser-based tool that is perfect for beginners or quick conversions.
You don’t need to install any software, just upload your file, choose your desired output format, and download the converted result within seconds.
Why It’s Popular:
- Supports DST, EXP, JEF, PES
- 100% online and free
- Offers instant conversions
- Preview your design before saving
Best For: Beginners or users who occasionally need to convert embroidery files for personal projects.
3. Ink/Stitch (Inkscape Extension)
Ink/Stitch is a free open-source embroidery extension for Inkscape. It’s perfect for people who want more creative control.
Features:
- Supports multiple machine formats
- Allows you to convert vector graphics into embroidery designs
- Lets you create and export your own stitch patterns
Best For: Designers familiar with Inkscape or vector art.
You can use Ink/Stitch to convert file to embroidery format
4. My Editor by Wings Systems
My Editor feels like a professional-grade converter that’s still free. It focuses on visual file handling and editing before conversion.
Top Benefits:
- Converts major formats (DST, PES, EXP, HUS, VIP, etc.)
- Allows resizing and color editing
- Simple interface with quick preview
Best For: Those who want light editing tools included with conversion.
It’s also handy when converting files to embroidery format
5. SewArt (Trial Version)
SewArt isn’t completely free, but its trial version works as a powerful embroidery file format converter with full conversion features. It is especially popular for image-to-stitch conversion, making it a useful option for turning printed artwork into embroidery-ready designs.
Highlights:
- Converts JPG, PNG, BMP into embroidery files
- Supports most embroidery machine outputs
- Beginner-friendly with guided steps
Best Use: Converting graphic designs or photos into machine-readable embroidery formats.
When you need to understand how to convert embroidery machine file formats starting from images, SewArt is a good learning tool.
6. Birdfont
Birdfont is a creative font-making tool that also works as a lightweight embroidery converter. It’s used by many hobbyists who want text-based embroidery designs.
Features:
- Converts SVG art to compatible embroidery files
- Completely free and open-source
- Works on Windows, Mac, and Linux
Best For: Text-based and outline embroidery creators.
If your project deals with logos or lettering and you need a free embroidery file format converter, Birdfont can handle it efficiently.
7. Hatch Embroidery Viewer
Hatch, built by Wilcom, offers a free viewer that doubles as a converter. This tool focuses on precision and professional-grade compatibility.
Why You’ll Love It:
- High-quality stitch visualization
- Converts designs between PES, DST, EXP, and more
- Quick previews to verify stitch sequencing
Best For: Small businesses and embroidery professionals managing client files.
This viewer is ideal for checking whether a design looks correct after conversion before loading it onto your machine.
8. ConvertIt, Mac
For Mac users, ConvertIt, Mac is one of the few reliable embroidery file format converter tools designed specifically for Apple platforms. It runs smoothly, offers stable performance, and is built to meet the needs of embroidery enthusiasts working on macOS.
Key Points:
- Converts major embroidery formats seamlessly
- Reads ZIP archives directly
- Automatically detects the best compatible output
Best For: Mac users who want a simple yet powerful tool to convert embroidery files quickly.
You can pair this converter with digitizing software to maintain perfect stitch flow, especially when converting large batches.
How to Convert Embroidery File Formats in 4 Easy Steps?
Regardless of which software you choose, the logic remains the same. Follow these steps to ensure your embroidery file format converter doesn’t corrupt your design:
- Open the Original: Launch your software and “Import” or “Open” the design you purchased or downloaded.
- Check the Hoop Size: Before converting, ensure the design fits within your machine’s maximum hoop area (e.g., 4×4 or 5×7).
- Select “Save As” or “Export”: Look for the Export function. This is where you will find a dropdown menu containing formats like .DST, .PES, .EXP, or .HUS.
- Transfer to USB: Save the file directly to a high-quality USB stick. Avoid using large-capacity drives (over 16GB), as some older embroidery machines cannot read them.
If you don’t want to waste time testing tools, fixing errors, or experimenting with an embroidery file format converter, it’s smarter to outsource the work. ZDigitizing is a trusted online embroidery digitizing service provider in Italy, USA, and worldwide, delivering clean, production-ready files without the hassle.
Understanding Common Embroidery Machine File Extensions
To use an embroidery file format converter effectively, you need to know which file extension matches your machine. There are dozens of formats, but most modern machines rely on a few specific ones.
Understanding these helps you select the right output when converting files to embroidery format.
DST (Tajima) – The Universal Commercial Standard
The .DST format is used by Tajima commercial machines, but almost every single embroidery machine can read it. It is considered a “stitch only” format, meaning it doesn’t store color information.
When you use an embroidery file format converter to create a .DST, you will have to manually set the colors on your machine’s screen.
PES (Brother/Babylock) – The Most Popular Home Format
If you have a Brother machine, you are likely looking for an embroidery format converter that outputs .PES files.
This format is excellent because it stores both the stitch data and the specific thread colors. It is very user-friendly and the most common format found in online design shops.

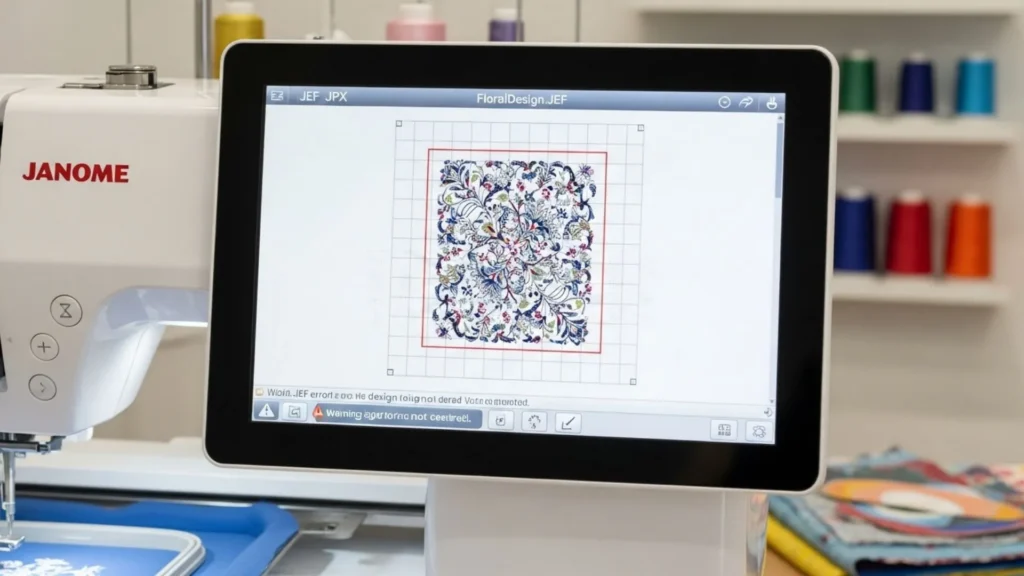

JEF and JPX (Janome) – Specialized Formats
Janome machines typically require .JEF files. These are very specific to the Janome hoop sizes.
When you use an embroidery file format converter for Janome, ensure that the design is centered within the hoop boundaries, or the machine might refuse to open the file for safety reasons.
EXP (Bernina/Melco) – The Non-Trim Standard
Bernina and Melco machines often use the .EXP format. Like .DST, older versions of .EXP might not store color data, but they are very reliable for high-speed stitching.
A good embroidery file format converter will help you toggle between these versions depending on how old your machine is.
Machine Brand | Primary Format | Characteristics |
Brother / Baby Lock | .PES / .PEC | Most common; stores extensive color data. |
Janome / Elna | .JEF / .SEW | Requires strict hoop centering. |
Tajima | .DST | Industry standard; does not store thread colors. |
Husqvarna / Viking | .HUS / .VP3 | Advanced scaling properties. |
Singer | .XXX | Simplified format for home use. |
Bernina | .EXP / .ART | Professional grade; .EXP is very stable. |
Why Some Free Converters May Not Open Your Files?
Sometimes, even the best embroidery file format converter will fail to open a design. This usually isn’t the software’s fault; there are a few common technical reasons for this. Knowing these can save you hours of troubleshooting.
First, check if the file is still inside a .ZIP folder. Most format converters cannot “see” inside a compressed folder.
You must right-click the folder and select “Extract All” before the software can access the data. This is a very common mistake for those just learning how to convert embroidery file formats.
Second, the design might be too large for your machine’s maximum hoop size. If you try to use an embroidery file format converter to turn a 5×7 design into a format for a machine that only supports 4×4, the machine will often hide the file.
It does this to protect the hoop from being hit by the needle. Always check the dimensions in your embroidery converter before saving.
Lastly, the file version might be too new. For example, a .PES version 11 file might not open on a 15-year-old Brother machine.
You can use your format converter to “Save As” an older version of the same format to fix this. This ensures the older hardware can read the digital instructions correctly.
Difference Between File Conversion and Image Digitizing
A common mistake is thinking that an embroidery file format converter can turn a photo of your dog into a stitch file. This is not how these tools work. Conversion is the process of changing one “stitch file” (like .PES) into another “stitch file” (like .DST). The software is simply translating the path that the needle already knows how to follow.
If you want to convert jpg to embroidery file format, you are actually looking for “digitizing.” Digitizing is much more complex because it involves telling the software where every single stitch should go, what direction they should point, and how dense they should be.
While some machine embroidery file format converters have “auto-digitize” buttons, they often produce messy results that can break needles or pucker fabric.
For professional results, you usually need a specialized embroidery digitizing program. These programs allow you to manually trace an image to create high-quality embroidery.
If you are a beginner, stick to using an embroidery file format converter for files that are already made for stitching. This will save you a lot of time and prevent potential damage to your embroidery machine.
Best Practices for Using a Machine Embroidery Format Converter Safely
Even simple conversions need care. Improper conversions can lead to broken stitches or file corruption.
Follow these safety practices to ensure smooth operations.
- Use trusted tools. Always download from official or verified sources.
- Test stitch on sample fabric. This avoids costly errors on final garments.
- Back up your original file. Never overwrite the source design.
- Check color sequences. Conversion sometimes alters color layers.
- Avoid directly converting compressed files. Unzip before converting for better results.
Using a machine embroidery file format converter correctly saves you time and maintains design integrity during production.
Common Problems When Converting Embroidery Files (and Fixes)
Sometimes conversions don’t go as planned.
Here are common issues users face. and quick fixes.
- Distorted design: Use tools that preserve stitch count like TrueSizer.
- Wrong colors showing: Manually match thread palettes after converting.
- Unsupported machine error: Double-check output format and select the correct one.
- File won’t open: Try re-exporting from another converter to fix metadata.
- Design resized incorrectly: Avoid resizing during conversion unless the converter maintains proportional stitches.
Understanding how to convert embroidery file formats correctly prevents these common headaches.
Best Practices for Professional Results
Whether you’re a hobbyist or business owner, following these practical habits makes a noticeable difference in results.
- Always verify final format before stitching.
- Maintain consistent hoop and stitch settings across conversions.
- Save both original and converted versions.
- Use multiple converters; sometimes one handles a format better than another.
- Combine a converter with an embroidery digitizing program for the best control.
If you produce embroidery daily, these habits ensure professional, machine-ready output across multiple projects.
Conclusion
Mastering a free embroidery file format converter is great for simple format swaps between .PES, .DST, or .JEF. However, a converter only changes the file’s “language”, it doesn’t fix poor stitch quality. F
or complex projects, like premium jacket back digitizing, automated tools often fail, leading to thread breaks and ruined fabric.
